TO-56(LD) HDR & CAP
Application
- Optical storage(CD-RW, DVD, Recordable)
- Optical communication(TOSA, FP, DFB)
- Industrial Module(Barcode Scanner, Laser Printer, etc.)

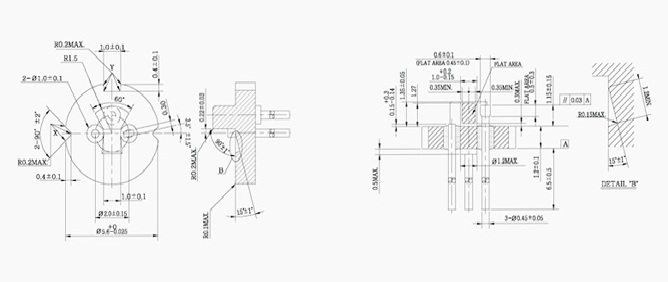

Products List of TO-56(LD) HDR & CAP
(unit : mm)
| Description |
Outside Dia. |
Body Dia. |
Material of Parts |
Plating |
| Eyelet(Base) |
Lead |
Glass Tablet |
| TO-56/2P3L |
5.6 |
5.6 |
Fe |
Kovar Ni-Alloy |
Soft Glass |
Electrolytic Ni+Gold |
| TO-56/3P4L |
| Description |
Outside Dia. |
Inside Dia. |
Eyelet(Base) |
Material of Parts |
Plating |
| Lens |
Sealing Glass |
| Window CAP(650nm) |
4.2 |
3.3 |
Ni-Alloy |
Hard Glass |
Low Temp. Glass |
Electroless Ni |
| Window CAP(780nm) |
